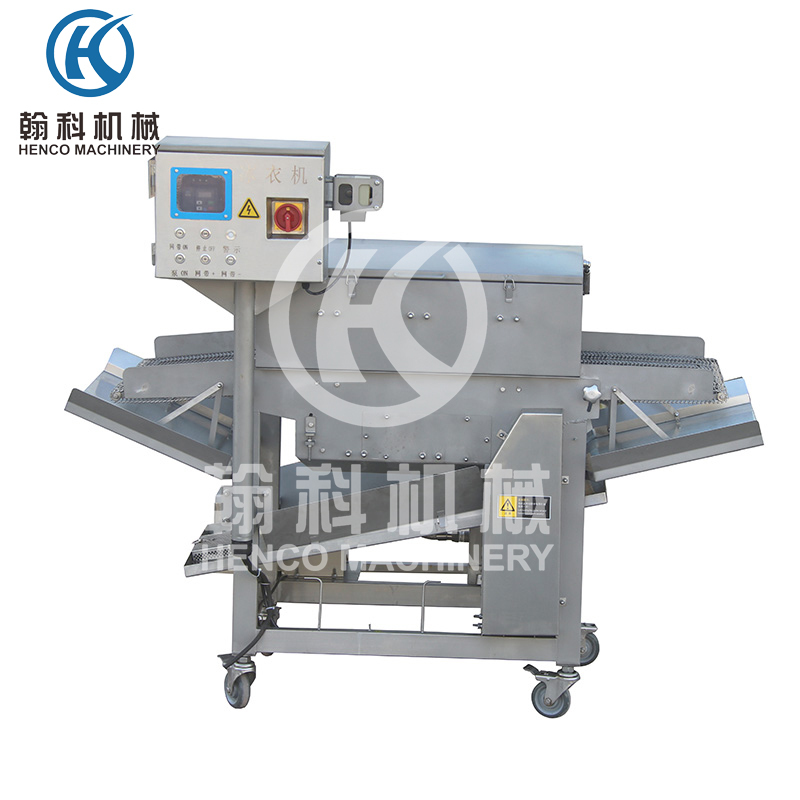

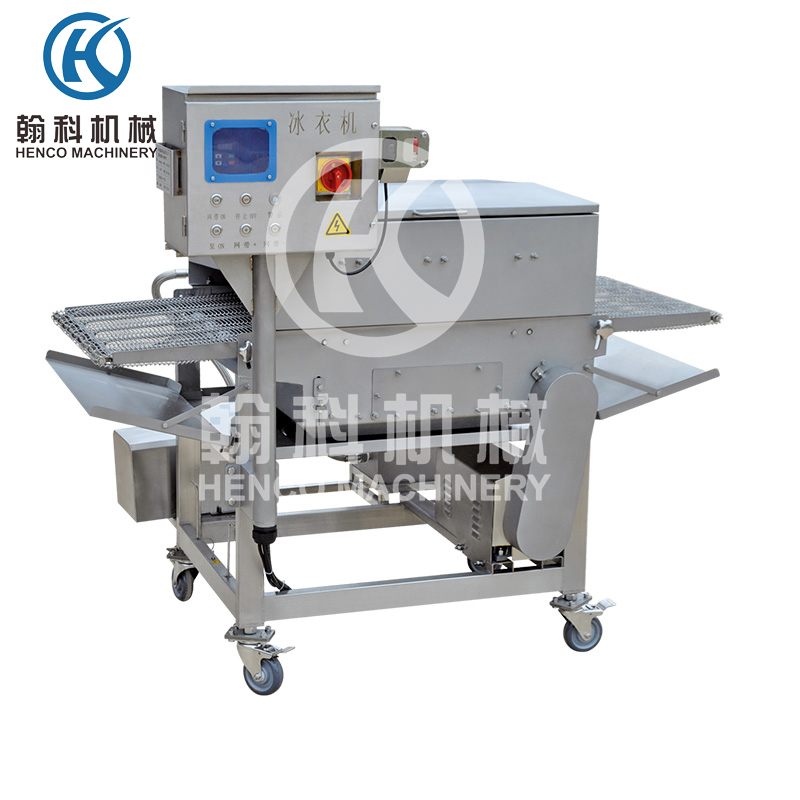

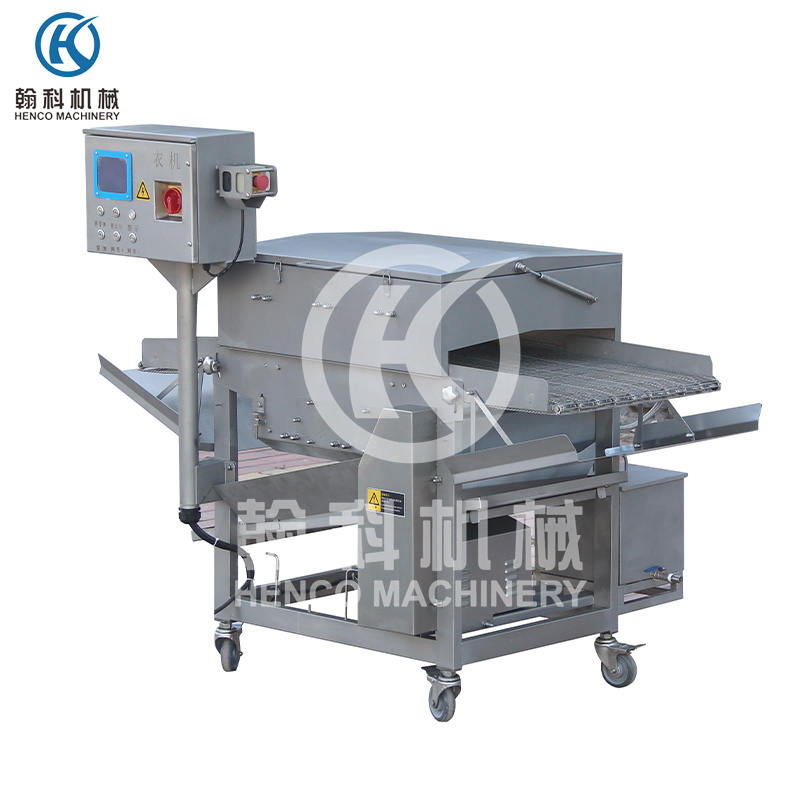

Automatic Intelligent Ice Coating Machine

It is suitable for the prepackaging of frozen food, which can form a uniform layer of ice coating on the surface of the product to reduce the loss of water during the refrigeration process and ensure the fresh and tender meat quality of the product.

  • Henco
  • Shandong China
  • Within 15 Days
  • Factory Direct Supply
  • Information
  • Video

Product brief introduction

Ice coat machine is a device used for product preservation and weight gain after freezing, which is convenient for products to enter the cold storage after freezing. The equipment is mainly used in the rapid ice packing of frozen products, the machine adopts the way of mesh belt conveying, the material is transported to the high pressure spray device, so that the material can be completely hung ice, and the ice hanging effect is good.

Product parameter



ModelHKBYJ600
Belt width600mm
Belt speed5~25m/min  adjustable
Input/Output height800±50mm /800±50mm
Power0.65kw
Overall dimension1460×750×1160mm±50mm



Product features and applications

Automatic ice coating machine

1.Ice coating machine is to mix water and air to form a mist spray to the surface of the product, so that the surface of the product to form a uniform layer of ice coating. Thus reduce the loss of water in the refrigeration process and ensure the fresh and tender meat quality of the product.

2.The spray is uniform, and the ice coating thickness can be adjusted by 2-5%. Safety waterproof rating IP65

Intelligent ice coating machine

3.Made of stainless steel and non-metallic materials that meet food requirements.

Ice coating machine

4.Suitable for uniform coating of chicken breast, beef, pork, fish, vegetables and other products.

Automatic ice coating machine

Product details introduced multi-directional display

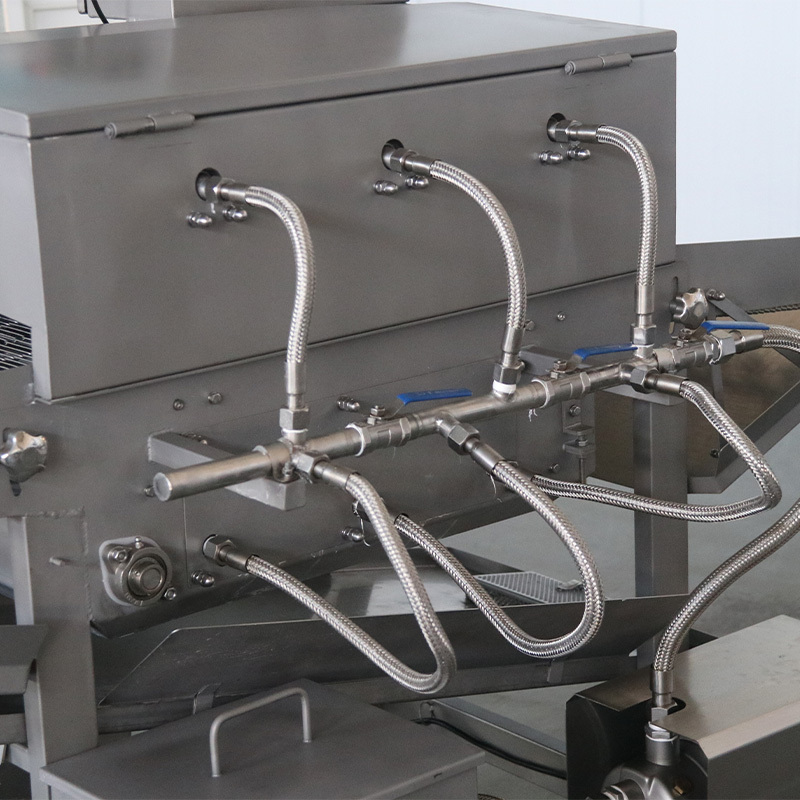

1.Spray evenly; Can make the product weight increase 2~5%.

Intelligent ice coating machine

2.Waste recycling, keep the production environment clean and reduce waste.

Ice coating machine

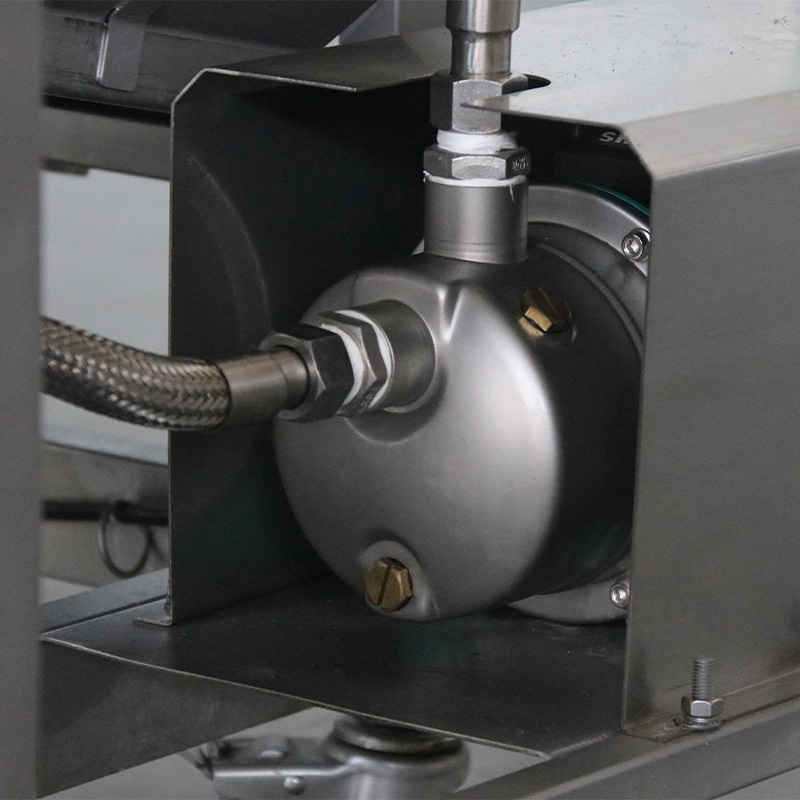

3.Motor waterproof grade IP56, full speed operation 790 times /min, can be washed with water, warranty 1 year, bad replacement machine.

Automatic ice coating machine

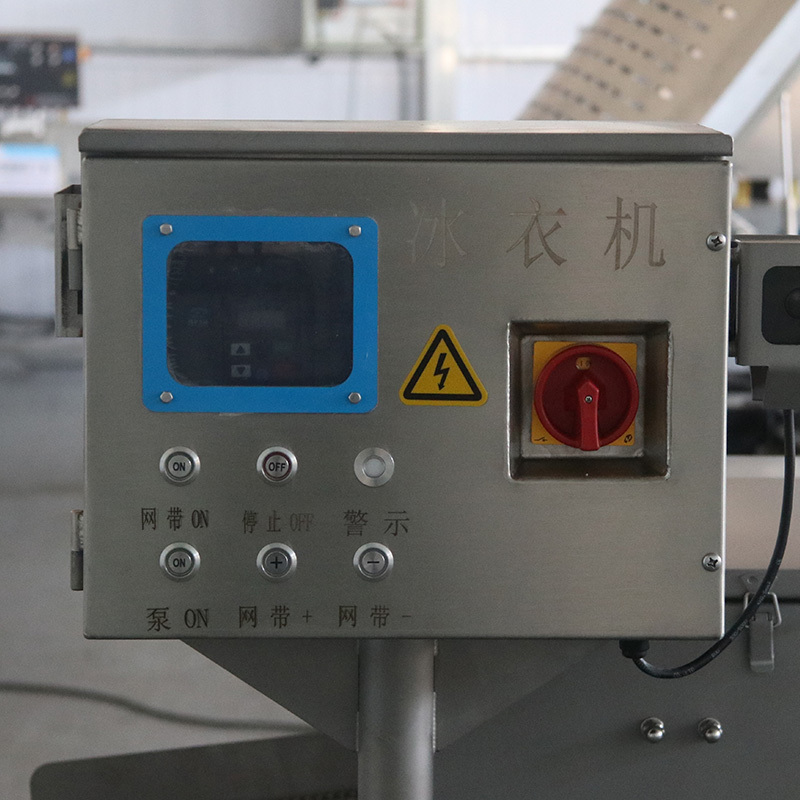

4.Siemens inverter can adjust the speed of the conveyor belt, and has a self-protection system, when the current and voltage are abnormal, the machine automatically stops and displays the fault code to avoid burning electrical parts and motors.

Intelligent ice coating machine

5.Water storage tank design to cope with a variety of unexpected situations to ensure product quality.

 Ice coating machine
